ULootLockerAsyncStartRemoteSession Class Reference

#include <LootLockerRemoteSessionRequestHandler.h>

Inheritance diagram for ULootLockerAsyncStartRemoteSession:

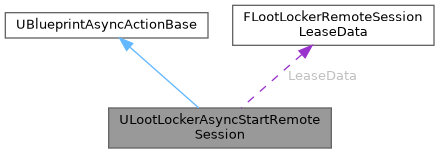

Collaboration diagram for ULootLockerAsyncStartRemoteSession:

Public Member Functions
virtual void	Activate () override
	Execute the actual operation.

Static Public Member Functions
static ULootLockerAsyncStartRemoteSession *	AsyncStartRemoteSession (UObject *WorldContextObjectfloat, float PollingIntervalSeconds, float TimeOutAfterMinutes, ELootLockerAccountProvider Provider=ELootLockerAccountProvider::Guest)
	Start a remote session If you want to let your local user sign in using another device then you use this method.
static ULootLockerAsyncStartRemoteSession *	AsyncStartRemoteSessionForLinking (UObject *WorldContextObject, FString ForPlayerWithUlid, float PollingIntervalSeconds, float TimeOutAfterMinutes, ELootLockerAccountProvider Provider=ELootLockerAccountProvider::Guest)
	Start a remote session with the intent to use the remote session for connecting accounts If you want to let your local user sign in using another device then you use this method.

Data Fields
FLootLockerAsyncRemoteSessionMulticastDelegate	OnProcessStarted
	Triggered once the lease process has successfully been started and the LeaseData property has been populated with the necessary information.
FLootLockerAsyncRemoteSessionMulticastDelegate	OnLeaseClaimed
	Triggered once the remote lease has been claimed (external process)
FLootLockerAsyncRemoteSessionMulticastDelegate	OnLeaseVerified
	Triggered once the remote lease has been verified (external process)
FLootLockerAsyncRemoteSessionMulticastDelegate	OnProcessCancelled
	Triggered if the process was canceled using the CancelRemoteSessionProcess method.
FLootLockerAsyncRemoteSessionMulticastDelegate	OnProcessTimedOut
	Triggered if the process times out.
FLootLockerAsyncRemoteSessionMulticastDelegate	OnProcessFailed
	Triggered if the process has concluded and was not a success.
FLootLockerAsyncRemoteSessionMulticastDelegate	OnProcessFinished
	Triggered if the process concluded successfully.

Protected Member Functions
virtual void	HandleLeaseProcessStarted (const FLootLockerLeaseRemoteSessionResponse &LeaseProcessStartedResponse)
virtual void	HandleLeaseProcessUpdate (const FLootLockerRemoteSessionStatusPollingResponse &LeaseProcessUpdateResponse)
virtual void	HandleLeaseProcessCompleted (const FLootLockerStartRemoteSessionResponse &LeaseProcessCompletedResponse)

Protected Attributes
FString	ForPlayerWithUlid = ""
ELootLockerRemoteSessionLeaseIntent	Intent = ELootLockerRemoteSessionLeaseIntent::login
ELootLockerAccountProvider	Provider = ELootLockerAccountProvider::Guest
FString	LeaseProcessID = ""
float	PollingIntervalInSeconds = 0.0f
float	TimeoutAfterMinutes = 0.0f
FLootLockerRemoteSessionLeaseData	LeaseData

Member Function Documentation

Activate()

virtual void ULootLockerAsyncStartRemoteSession::Activate ( )

overridevirtual

Execute the actual operation.

AsyncStartRemoteSession()

static ULootLockerAsyncStartRemoteSession * ULootLockerAsyncStartRemoteSession::AsyncStartRemoteSession ( UObject *  WorldContextObjectfloat, float  PollingIntervalSeconds, float  TimeOutAfterMinutes, ELootLockerAccountProvider  Provider = ELootLockerAccountProvider::Guest  )

static

Start a remote session If you want to let your local user sign in using another device then you use this method.

First you will get the lease information (the LeaseData property will be populated) needed to allow a secondary device to authenticate and the OnProcessStarted event will trigger.

Once the lease process status changes, the corresponding event will be triggered.

When the process has come to an end successfully, the OnProcessFinished event will trigger and the SessionTokenOnSuccess, RefreshTokenOnSuccess, and PlayerDataOnSuccess properties will be populated if present in the response.

If the process is cancelled by the user, the OnProcessCanceled event will trigger.

If the process times out, the OnProcessTimedOut event will trigger.

If the process fails, the OnProcessFailed event will trigger and the ResponseOnFailure property will be populated and contain error data.

Parameters

WorldContextObject	Non input: Automatic context for async node
PollingIntervalSeconds	Optional: How often to poll the status of the remote session process
TimeOutAfterMinutes	Optional: How long to allow the process to take in its entirety
Provider	Optional: Preloads the connection flow with which account provider to use for linking, so the user does not have to select it manually. Leave as Guest to let the user choose.

AsyncStartRemoteSessionForLinking()

static ULootLockerAsyncStartRemoteSession * ULootLockerAsyncStartRemoteSession::AsyncStartRemoteSessionForLinking ( UObject *  WorldContextObject, FString  ForPlayerWithUlid, float  PollingIntervalSeconds, float  TimeOutAfterMinutes, ELootLockerAccountProvider  Provider = ELootLockerAccountProvider::Guest  )

static

Start a remote session with the intent to use the remote session for connecting accounts If you want to let your local user sign in using another device then you use this method.

First you will get the lease information (the LeaseData property will be populated) needed to allow a secondary device to authenticate and the OnProcessStarted event will trigger.

Once the lease process status changes, the corresponding event will be triggered.

When the process has come to an end successfully, the OnProcessFinished event will trigger and the SessionTokenOnSuccess, RefreshTokenOnSuccess, and PlayerDataOnSuccess properties will be populated if present in the response.

If the process is cancelled by the user, the OnProcessCanceled event will trigger.

If the process times out, the OnProcessTimedOut event will trigger.

If the process fails, the OnProcessFailed event will trigger and the ResponseOnFailure property will be populated and contain error data.

Parameters

WorldContextObject	Non input: Automatic context for async node
ForPlayerWithUlid	Execute the request for the specified player (the player that you intend to link the remote account into).
PollingIntervalSeconds	Optional: How often to poll the status of the remote session process
TimeOutAfterMinutes	Optional: How long to allow the process to take in its entirety
Provider	Optional: Preloads the connection flow with which account provider to use for linking, so the user does not have to select it manually. Leave as Guest to let the user choose.

Returns

HandleLeaseProcessCompleted()

virtual void ULootLockerAsyncStartRemoteSession::HandleLeaseProcessCompleted ( const FLootLockerStartRemoteSessionResponse &  LeaseProcessCompletedResponse )

protectedvirtual

HandleLeaseProcessStarted()

virtual void ULootLockerAsyncStartRemoteSession::HandleLeaseProcessStarted ( const FLootLockerLeaseRemoteSessionResponse &  LeaseProcessStartedResponse )

protectedvirtual

HandleLeaseProcessUpdate()

virtual void ULootLockerAsyncStartRemoteSession::HandleLeaseProcessUpdate ( const FLootLockerRemoteSessionStatusPollingResponse &  LeaseProcessUpdateResponse )

protectedvirtual

Field Documentation

ForPlayerWithUlid

FString ULootLockerAsyncStartRemoteSession::ForPlayerWithUlid = ""

protected

Intent

ELootLockerRemoteSessionLeaseIntent ULootLockerAsyncStartRemoteSession::Intent = ELootLockerRemoteSessionLeaseIntent::login

protected

LeaseData

FLootLockerRemoteSessionLeaseData ULootLockerAsyncStartRemoteSession::LeaseData

protected

LeaseProcessID

FString ULootLockerAsyncStartRemoteSession::LeaseProcessID = ""

protected

OnLeaseClaimed

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnLeaseClaimed

Triggered once the remote lease has been claimed (external process)

OnLeaseVerified

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnLeaseVerified

Triggered once the remote lease has been verified (external process)

OnProcessCancelled

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnProcessCancelled

Triggered if the process was canceled using the CancelRemoteSessionProcess method.

OnProcessFailed

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnProcessFailed

Triggered if the process has concluded and was not a success.

The ResponseOnFailure will be populated with the relevant error information

OnProcessFinished

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnProcessFinished

Triggered if the process concluded successfully.

The SessionTokenOnSuccess, RefreshTokenOnSuccess, and PlayerDataOnSuccess properties will be populated (if present in the response).

OnProcessStarted

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnProcessStarted

Triggered once the lease process has successfully been started and the LeaseData property has been populated with the necessary information.

OnProcessTimedOut

FLootLockerAsyncRemoteSessionMulticastDelegate ULootLockerAsyncStartRemoteSession::OnProcessTimedOut

Triggered if the process times out.

PollingIntervalInSeconds

float ULootLockerAsyncStartRemoteSession::PollingIntervalInSeconds = 0.0f

protected

Provider

ELootLockerAccountProvider ULootLockerAsyncStartRemoteSession::Provider = ELootLockerAccountProvider::Guest

protected

TimeoutAfterMinutes

float ULootLockerAsyncStartRemoteSession::TimeoutAfterMinutes = 0.0f

protected
